« on: March 23, 2007, 04:17:48 PM »

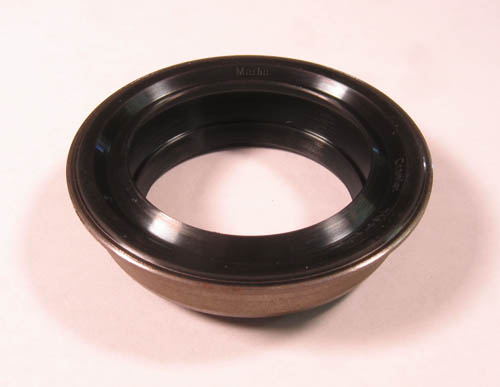

Marlin Crawler is proud to release there new Heavy Duty inner axle seal for all 1979-1985 Toyota 8" Front Axles, and all 1969-1/1990 Landcruiser front axles including FJ40, FJ45, FJ55, FJ60, and FJ62.

Designed again by Marlin Czajkowski himself, these front inner axle seals compliment our new Special Fit Rear Axle Seals.

New features include:
  • Indexed "lip" for a perfect perpendicular fit each and every time. No more "eye balling it"
  • Wider seal moves the rubber away from the metal flange to allow maximum movement and shock absorption
  • Steel Expansion Ring instead of a spring ensures true circular inner diameter even when the axle defelects and vibrates from side-to-side.





Compare the width of our new Heavy Duty Inner Axle Seal to other common seals:

SealWidth
Marlin Crawler Heavy Duty Seal    13.20mm / 0.520in
Factory Toyota Seal 8.14mm / 0.340in
Common "Imported" Seal 7.00mm / 0.275in

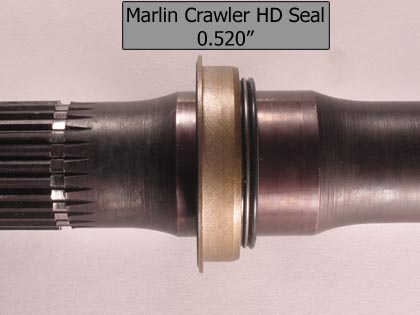

Here are some pictures that show the width comparison between the common aftermarket inner axle seal and the New Marlin Crawler Heavy Duty Inner Axle Seal:





Here we show why the new Marlin Crawler Heavy Duty Inner Axle Seal is so innovative.

    Common Aftermarket Seal     Marlin Crawler HD Seal
Deflection required
for Air Gap
0.022" / 0.56mm
0.058" / 1.48mm

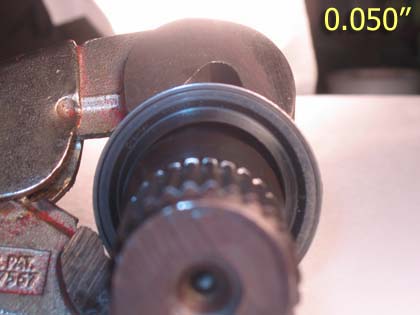

Here we see our HD Seal pushed 0.050", just before an air gap is formed:


And here is the common aftermarket seal pushed out 0.050", the same distance that our HD Seal still seals as seen above:


Here we see our HD Seal pushed 0.058" where an Air Gap is formed:


Now comes the real shocker!
Here is the common aftermarket seal SITTING AT REST.
The weight of the axle causes an air gap to form without any external forces!!


So this commonly used seal can't even support the weight of the axle it is supposed to be sealing! I know this is not necessarily a design criteria of a seal, but since the birfeld and inner axle vibrate and deflect, it is awesome to know that the Effective Sealing Distance of the Marlin Crawler Heavy Duty Inner Axle Seal is an astonishing 164% greater than the common aftermarket seals! Clapping

The price for these bad boys are only $7.49 each and are ready for immediate same day shipping!

Improving the Toyota Rock Crawling Industry one Creative Design at a time,
Marlin Crawler
« Last Edit: November 14, 2007, 10:23:26 AM by crazywb » Logged
Understanding the Success of the Marlin Crawler Dual Transfer Case
4X Flyin
Crawler Guru
****

Turtle Points 2
Offline Offline

Gender: Male
Posts: 430
Member since May 05

Crawling with Marlin

« Reply #1 on: March 23, 2007, 10:05:35 PM »
These are sweet. How soon will they be on your web site so I can load up my cart and go to check out?
Logged
82 1st Gen with 4.3L vortec and 4l60e. Linked front and rear

My build up. Getting linked
http://board.marlincrawler.com/index.php?topic=50700.msg711361#msg711361
YotaChris
Rock Master
***

Turtle Points 1
Offline Offline

Gender: Male
Posts: 272
Member since Jan 04

Crawling with Marlin

« Reply #2 on: March 24, 2007, 11:02:36 PM »
x2  Big Thumb Up
Logged
I LOVE MY YOTAS!!
MiniSimp
Outdoor Enthusiast
Gold Turtle Award
*

Turtle Points -237
Offline Offline

Gender: Male
Posts: 4,943
Member since Jan 05

SimpsonBrothers.net

WWW
« Reply #3 on: March 26, 2007, 01:23:46 PM »
Nice job!

I like it when companies invent "New" products instead of just replicating something someone else has already done. I'm glad you are thinking of ways to better our Toyota's.

 Thumbs Up Thumbs Up
Logged


My blog
Cheesemaker
The 2K Group
***

Turtle Points 79
Offline Offline

Gender: Male
Posts: 2,281
Member since Sep 04

Dean Tyler, you were an inspiration to all!!

« Reply #4 on: March 27, 2007, 03:04:24 PM »
With Marlin it's the little things that far out weighs the big things!  I've said it before, ~  "Marlin, Super Genius!"
Logged
Miss ya Dean (4THEWKN) & Kyle (KYOTA)!!

4THEWKN~9/17/2006  If it wasn't for you, I'd be driving something other than a Toyota!

My build up ~ project Kilchis! http://board.marlincrawler.com/index.php?topic=32961.0
Zak's truck build ~ http://board.marlincrawler.com/index.php?topic=64319.0;topicseen
BigMike
Applied Common Sense
Gold Turtle Award
*

Turtle Points 375
Online Online

Gender: Male
Posts: 12,895
Member since Apr 02

Crawling 511:1

WWW
« Reply #5 on: March 27, 2007, 06:29:01 PM »
Quote from: cheesemaker on March 27, 2007, 03:04:24 PM
I've said it before, ~  "Marlin, Super Genius!"

Well you do realize that Marlin was born the same year Einstein passed Idea
Logged
Understanding the Success of the Marlin Crawler Dual Transfer Case
TurtleTappers91
Rock Master
***

Turtle Points -5
Offline Offline

Gender: Male
Posts: 313
Member since Mar 07

..I walks me a mudhole and I stomps it dry... baby

« Reply #6 on: March 27, 2007, 06:53:34 PM »
 Bow Down YAAAAAAAAAAAAAAAAAAAAAAAAY!!!!!!! NO MORE LEAKS !!!!!!!!!!!!!1 Bow Down
I love Marlin Crawler, inc. Driving
Logged
cheap sunglasses
Rock Master
***

Turtle Points 58
Offline Offline

Gender: Male
Posts: 256
Member since Dec 05

Soon to be shorter and slower :)

« Reply #7 on: April 03, 2007, 09:48:57 PM »
Quote from: BigMike on March 27, 2007, 06:29:01 PM
Well you do realize that Marlin was born the same year Einstein passed Idea


Hmmm...

 Burn Out!
Logged
'82 on 35's, not much else.
BigMike
Applied Common Sense
Gold Turtle Award
*

Turtle Points 375
Online Online

Gender: Male
Posts: 12,895
Member since Apr 02

Crawling 511:1

WWW
« Reply #8 on: April 04, 2007, 11:27:10 PM »
Ok, check the opening post here for the new updates and pictures. Sorry it took me so long Wave

BigMike
« Last Edit: April 04, 2007, 11:58:43 PM by BigMike » Logged
Understanding the Success of the Marlin Crawler Dual Transfer Case
854RUN
4WD Legend
*****

Turtle Points 0
Offline Offline

Gender: Male
Posts: 886
Member since Mar 06

4WHEEL 4EVER

« Reply #9 on: April 05, 2007, 06:57:32 AM »
super sweet! what the price on these bad boys Mike? i have a leaky front end and need new seals
Logged
1985 4RUNNER (rip) http://board.marlincrawler.com/index.php?topic=54940.0

1997 T100, 4.88, DUAL T-CASE, R151, lockright in the rear, Alcan springs, 37"S, Bobbed 15", 3.4L TRD Supercharger, JBL headers
http://board.marlincrawler.com/index.php?topic=35174.0

"When the power of love overcomes the love of power the world will know peace" Jimmy Hendrix

-JOSH-
BigMike
Applied Common Sense
Gold Turtle Award
*

Turtle Points 375
Online Online

Gender: Male
Posts: 12,895
Member since Apr 02

Crawling 511:1

WWW
« Reply #10 on: April 05, 2007, 07:14:21 AM »
Quote from: 854RUN on April 05, 2007, 06:57:32 AM
super sweet! what the price on these bad boys Mike? i have a leaky front end and need new seals

Quote from: BigMike on March 23, 2007, 04:17:48 PM
The price for these bad boys are only $7.49 each and are ready for immediate same day shipping!
Heavy Duty Front Inner Axle Seal, $7.49

Green Grin
Logged
Understanding the Success of the Marlin Crawler Dual Transfer Case
sloyota
4WD Legend
*****

Turtle Points 250
Offline Offline

Gender: Male
Posts: 804
Member since Mar 05

1/4TiLTKrawlers.Petaluma,Ca. 707-766-9592

« Reply #11 on: April 05, 2007, 07:44:29 AM »
these are a very nice idea.glad Marlin came up with it.$ 7.50 each is well worth it.
make's you wonder what Marlin will think of next.................
Logged
I'm not responsable for my own action's.
854RUN
4WD Legend
*****

Turtle Points 0
Offline Offline

Gender: Male
Posts: 886
Member since Mar 06

4WHEEL 4EVER

« Reply #12 on: April 05, 2007, 09:25:32 AM »
thanks Mike i missed that  Hammer but  looked just looked under the axle page and did not see them am i looking in the wrong spot? i would like to buy them to day  Yes Nod


never mind i clicked on what you posted and it put it in the cart for me, thanks Mike
« Last Edit: April 05, 2007, 09:34:07 AM by 854RUN » Logged
1985 4RUNNER (rip) http://board.marlincrawler.com/index.php?topic=54940.0

1997 T100, 4.88, DUAL T-CASE, R151, lockright in the rear, Alcan springs, 37"S, Bobbed 15", 3.4L TRD Supercharger, JBL headers
http://board.marlincrawler.com/index.php?topic=35174.0

"When the power of love overcomes the love of power the world will know peace" Jimmy Hendrix

-JOSH-
BigMike
Applied Common Sense
Gold Turtle Award
*

Turtle Points 375
Online Online

Gender: Male
Posts: 12,895
Member since Apr 02

Crawling 511:1

WWW
« Reply #13 on: April 05, 2007, 10:40:52 AM »
They will be available in the Axle section of our website late tonight.

Currently they are only available via the shopping cart link on this thread.

Regards,
BigMike
Logged
Understanding the Success of the Marlin Crawler Dual Transfer Case
twistedtoy92
The 2K Group
***

Turtle Points 1
Offline Offline

Gender: Male
Posts: 2,056
Member since Dec 06

Gotta love a Yota.....

« Reply #14 on: April 05, 2007, 12:02:15 PM »
oH MAN!!!! I just put those cheesy little seals in my 84 but the axle is still disassembled!!! i'm gonna pop em out and order a couple sets of those badboys! MARLIN ROCKS!!!!!! Beer Chug\'n HE does show resemblence to Einstein..... hmmmmm a paradox.....   Think...
Logged
1992 Toyota Reg Cab, 7MGTE/R151F/Dual Ulimates in the works

1985 4runner, 32s, marlin hysteer, Awaiting new engine, 92's front axle, springs, duals, 12'' slip DL, optima red top

1982 2wd SR5, needs alittle TLC
Derracer
Rock Crawl'n
**

Turtle Points -1
Offline Offline

Gender: Male
Posts: 16
Member since Nov 06

« Reply #15 on: April 05, 2007, 12:53:35 PM »
Im almost ready to order a knuckle seal kit, can I get these seals in the kit instead of the regular ones?
Logged
Wermz84
Rock Nerd!
Silver Turtle Award
*

Turtle Points 220
Offline Offline

Gender: Male
Posts: 3,111
Member since May 05

Ouch My Eye!

« Reply #16 on: April 05, 2007, 01:13:39 PM »
Woohoo!

cant wait.
Logged
At Least have the Balls to call me names to my Face you bunch of \ /'s
TacoRunner
The 1K Club
*

Turtle Points 19248
Offline Offline

Gender: Male
Posts: 1,304
Member since Feb 04

The 1st 3RZ swap/ Started in 99' finished in 01'

« Reply #17 on: April 05, 2007, 02:16:52 PM »
Got mine a few weeks ago, from the pics that are up. I Know they will kick ass.
Logged
What you've just said is one of the most insanely idiotic things I have ever heard. At no point in your rambling, incoherent response were you even close to anything that could be considered a rational thought. Everyone in this room is now dumber for having listened to it.


AKA The GODFATHER-----3RZ Original / Turbo Tranny Dual Ultimate Crawler Clocked w/Diamonds F & R  4WUnderground Linked F & R
http://www.4wdtoyotaowner.com
BigMike
Applied Common Sense
Gold Turtle Award
*

Turtle Points 375
Online Online

Gender: Male
Posts: 12,895
Member since Apr 02

Crawling 511:1

WWW
« Reply #18 on: April 05, 2007, 03:55:34 PM »
Quote from: Derracer on April 05, 2007, 12:53:35 PM
Im almost ready to order a knuckle seal kit, can I get these seals in the kit instead of the regular ones?

These HD seals are available separately or included in any kit for an additional price of $7.49/each.


BigMike
Logged
Understanding the Success of the Marlin Crawler Dual Transfer Case
crawler925
Rock Master
***

Turtle Points 15
Offline Offline

Gender: Male
Posts: 165
Member since Jan 05

Crawling with Marlin

« Reply #19 on: April 05, 2007, 05:19:56 PM »
The great marlin has done it again!!!!!!! were not worthy!!!!!! Bow Down Bow Down Bow Down Bow Down Bow Down Bow Down Bow Down Bow Down Bow Down Bow Down
Logged
5" sas with rear 5" coil to leaf conversion , ARB front bumper, 8000 warn winch , front and rear ARB air lockers, 5.29 gears, 36/12.5/15 swamper sx on 15x8 2in back space rockcrawlers, Bilstein 5150 14" Shocks, Bilstein steering stabilizer, cobra CB, onboard air compressor w/7 gallon tank, con-ferr roof rack,
6.72:1
The 1.5K Club
**

Turtle Points 74
Offline Offline

Gender: Male
Posts: 1,849
Member since Mar 05

Member of the Magnitude Club

« Reply #20 on: April 05, 2007, 07:25:33 PM »
Ausgezeichnet! Ausgezeichnet!


(Excellent! Excellent!)

Marlin ist unseren Fuehrer!

(Marlin is our Leader!)
Logged
mrkupfer@gmail.com
Cell: (205) 919-3290
PROJECT ROCKWELL-MINI IS HERE.
www.Kupferphotography.com
Wermz84
Rock Nerd!
Silver Turtle Award
*

Turtle Points 220
Offline Offline

Gender: Male
Posts: 3,111
Member since May 05

Ouch My Eye!

« Reply #21 on: April 06, 2007, 12:14:33 AM »
Quote from: BigMike on April 05, 2007, 03:55:34 PM
These HD seals are available separately or included in any kit for an additional price of $7.49/each.


BigMike

this is excellent news.
Logged
At Least have the Balls to call me names to my Face you bunch of \ /'s
4X Flyin
Crawler Guru
****

Turtle Points 2
Offline Offline

Gender: Male
Posts: 430
Member since May 05

Crawling with Marlin

« Reply #22 on: April 06, 2007, 12:21:30 AM »
I ordered mine online at 4 a.m.
By lunch time I had an e-mail that they had shipped out.

Nice!!!!!!!!!!!!!!!!!!!!!!!!!!!!
 Beer
Logged
82 1st Gen with 4.3L vortec and 4l60e. Linked front and rear

My build up. Getting linked
http://board.marlincrawler.com/index.php?topic=50700.msg711361#msg711361
Roc Doc
Rock Crawl'n
**

Turtle Points -59
Offline Offline

Posts: 39
Member since Jul 04

Crawling with Marlin

WWW
« Reply #23 on: April 06, 2007, 07:22:52 AM »
Quote from: cheap sunglasses on April 03, 2007, 09:48:57 PM


Hmmm...

 Burn Out!

It's gotta be the 'stache!

These are just in time for my new front axle.

See ya at the end of the month.
Logged
According to a recent study, 50% of all statistics are correct.
ToYocRawleR
Gettin' Loose!!
The 2.5K Group
****

Turtle Points 0
Offline Offline

Gender: Male
Posts: 2,672
Member since Oct 05

The Homie!!!

« Reply #24 on: April 06, 2007, 08:02:52 AM »
Damn these things are dope! Will they fit in a fj80 housing?
Logged
-
Rigs:
05 F-250 Powerstroke
88 SAS toy

fortysixandtwo - I drove through Dunsmuir once I dont think anything there is "super nice"
Just kidding man. I guess there is, its your bed
MiniSimp
Outdoor Enthusiast
Gold Turtle Award
*

Turtle Points -237
Offline Offline

Gender: Male
Posts: 4,943
Member since Jan 05

SimpsonBrothers.net

WWW
« Reply #25 on: April 06, 2007, 08:52:13 AM »
I just ordered my set, thanks Stewart!

It was funny though, afer I told him who I was, he asked "have you ordered with us before?" hehehe
Just messin Stewart, thanks for your help!
Logged


My blog
BigMike
Applied Common Sense
Gold Turtle Award
*

Turtle Points 375
Online Online

Gender: Male
Posts: 12,895
Member since Apr 02

Crawling 511:1

WWW
« Reply #26 on: April 06, 2007, 09:38:45 AM »
Quote from: ToYocRawleR on April 06, 2007, 08:02:52 AM
Damn these things are dope! Will they fit in a fj80 housing?
At this time, no, sorry.

Ok, the seals are now available on our online catalog page here:
Marlin Crawler > Axle Parts > HD Front Inner Axle Seals
Logged
Understanding the Success of the Marlin Crawler Dual Transfer Case
Vortec_Cruiser
Rock Crawl'n
**

Turtle Points -1
Offline Offline

Gender: Male
Posts: 58
Member since Apr 03

1977 FJ40

« Reply #27 on: April 06, 2007, 11:50:03 AM »
It's about time someone came out with an effective front axle seal. Thanks Marlin!   Thumbs Up
Logged
Ed Gilbert - TLCA #5659, So. Cal. TLCA,
1977(reg. as 1962) FJ40 w/5.7L Vortec
Formula 4 Toy F006 (Build in-progress)
mudaddict
The 1K Club
*

Turtle Points 100
Offline Offline

Gender: Male
Posts: 1,336
Member since Dec 04

« Reply #28 on: April 07, 2007, 08:07:54 AM »
YAY! im glad to see this one im just rebuilding the front axle to!! im ordering a set here withing prob the hour!!
Logged
USA R.I.P. Travis "dean" tyler aka Marlin Crawler Turtle Logo 4thwknd Marlin Crawler Turtle Logo you will be remembered sept 17 2006!! USA


92 runner sased welded rear e locker front. 10 degreee total rotated front housing 35 bfg mud terrains 5 in marlin springs front 3 link rear with 16in coilovers. chopped top making my very own toyota sut Yup yup
TurtleTappers91
Rock Master
***

Turtle Points -5
Offline Offline

Gender: Male
Posts: 313
Member since Mar 07

..I walks me a mudhole and I stomps it dry... baby

« Reply #29 on: April 07, 2007, 08:41:39 PM »
Just ordered my set!    Hot  Dog!
Logged
   Pages: [1] 2 3 4   Go Up
  Print
Marlin Crawler - Online Forum > Marlin Crawler > New Announcements and Info (Moderators: CruzrDave, freds40, jonathan82toy, BLUE, Nicholas@MCI) > Topic: New Product - Marlin Crawler Heavy Duty Front Inner Axle Seals

Jump to:

© All Content Copyright 1994-2010 Marlin Crawler, Inc. All products intended for Off-Road use. Prices subject to change without notice.
Powered by SMF | SMF © 2006-2008, Simple Machines LLC
Page created in 0.361 seconds with 20 queries.
